UHV Components
Our UHV components portfolio includes precision-engineered feedthroughs, electrical connectors, and optical viewports designed for ultra-high vacuum environments. Sourced from Solid Sealing Technology, these components meet the exacting standards required by government laboratories, accelerator facilities, and semiconductor manufacturers.

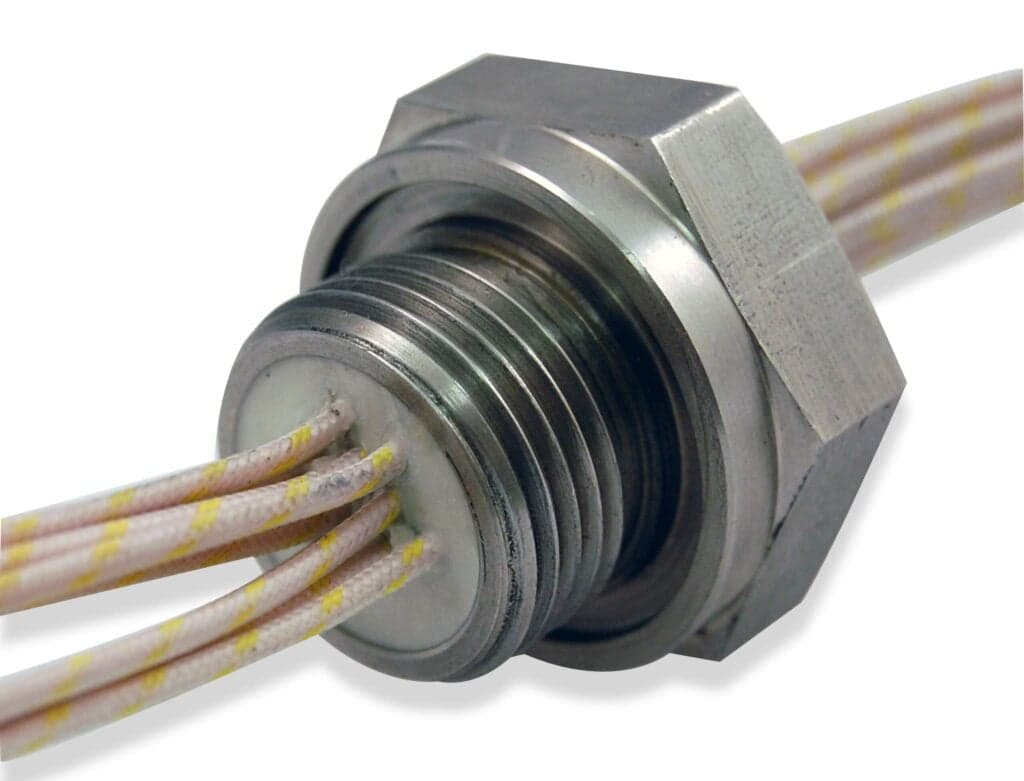

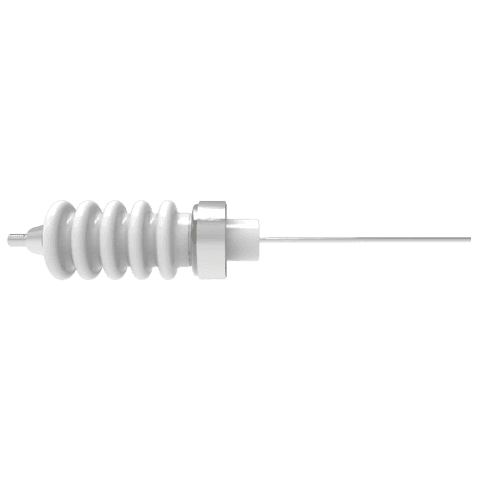

Electrical Feedthroughs
Hermetically sealed electrical feedthroughs for ultra-high vacuum systems, available in single and multi-pin configurations.
Key Specifications
- Leak rate: < 1×10⁻⁹ atm·cc/sec He
- Voltage rating: up to 30 kV
- CF, KF, and ISO flange options
- Ceramaseal and glass-to-metal seals
Applications

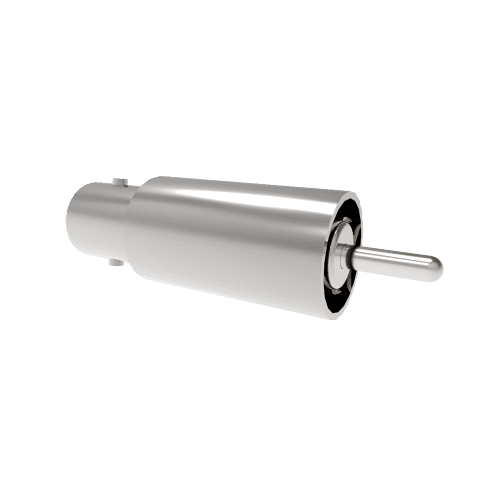

Vacuum Connectors

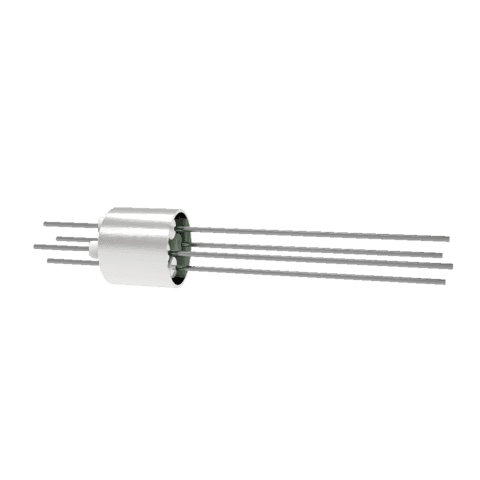

Multi-pin vacuum connectors and instrumentation feedthroughs for signal and power transmission through vacuum barriers.
Key Specifications
- D-sub, circular, and coaxial types
- Operating temp: -269°C to +450°C
- UHV compatible materials
- Custom pin configurations available
Applications

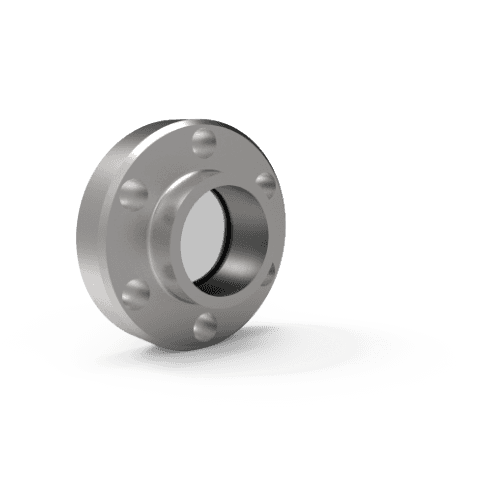

Optical Viewports
High-quality optical viewports with anti-reflective coatings for in-situ observation of vacuum processes.
Key Specifications
- Materials: Kodial, Quartz, Sapphire
- AR/AR coated options
- CF and KF flanged
- Clear apertures: 16–150 mm
Applications
Interested in UHV Components?
Contact our specialists for pricing, availability, and custom configurations.
